TOLC-105-22-F-Q-LC
Board-to-Board Connectors
TOLC-105-22-F-Q-LC
The replacement model for TOLC-105-22-F-Q-LC is WTOLC-105-22-F-Q-LC.It is a drop-in alternative to Shentai SMT male connector TOLC-105-22-L/F/S-Q-LC-K.1.27mm pitch, 4-row 20Pin, supports high and low frequency transmission, with heat resistance, cold resistance, high plug durability and oxidation resistance.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$2.9 $2.6
In Stock (2066)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TOLC-105-22-F-Q-LC
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 3μin（0.076μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
Related products
Board-to-Board Connectors
TOLC-145-12-L-Q-A
TOLC-145-12-L-Q-A
Board-to-Board Connectors

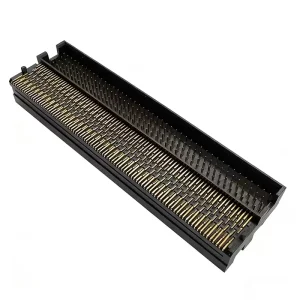

SOLC-145-02-L-Q-LC
SOLC-145-02-L-Q-LC
Board-to-Board Connectors
TOLC-140-12-S-Q-LC
TOLC-140-12-S-Q-LC
Board-to-Board Connectors

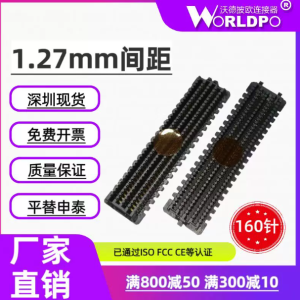

ASP-134606-01
