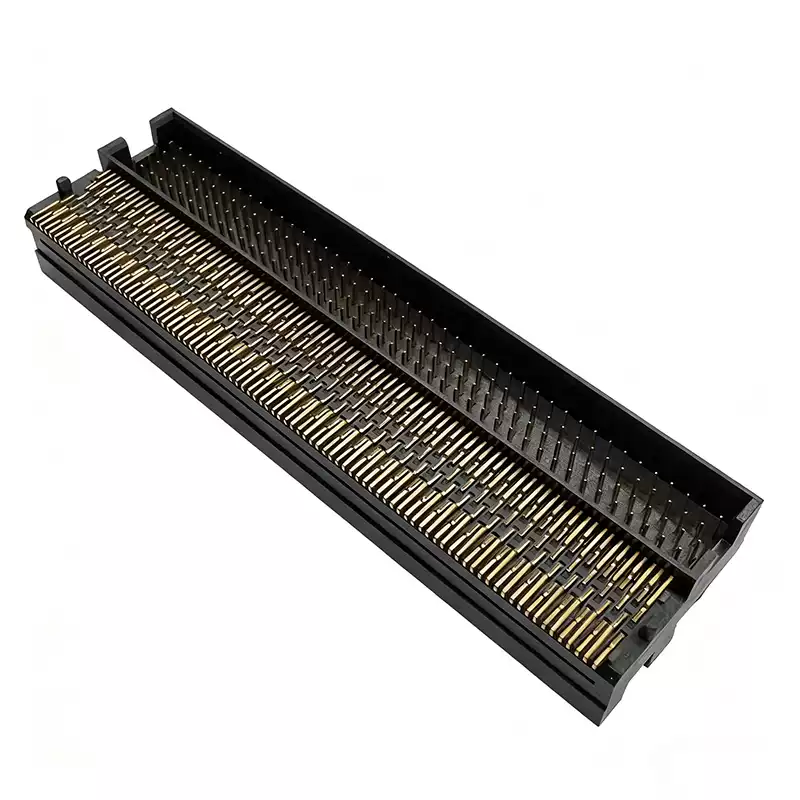

SOLC-145-02-L-Q-LC
Board-to-Board Connectors
SOLC-145-02-L-Q-LC
WSOLC-4X45H02LQLC serves as the direct replacement for the SOLC-145-02-L-Q-LC. It is a female header with a 8mm mated height, featuring high & low frequency performance, high temperature and cold resistance, excellent durability for repeated mating, and oxidation resistance.
Connector Series: WSOLC
Connector Pitch: 1.27mm
Rows: 4
$78 $72.72
In Stock (1769)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model SOLC-145-02-L-Q-LC
Connector Type Header
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal High Copper Alloy
Rows 4
Color Lemon Yellow
Rated Voltage (VAC/VDC) 600
Rated Current per Contact (Max.) (A) 3～5A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness Phosphor Bronze - Selective Gold/Tin Plating (Au/Sn) - 5μin (0.127μm)
Packaging Reel with Cover
Insulation Diameter (mm) Other
Wire Gauge (AWG) FFC (Flexible Flat Cable)
Operating Temperature -40℃～80℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
