TOLC-145-12-L-Q-A
Board-to-Board Connectors
TOLC-145-12-L-Q-A

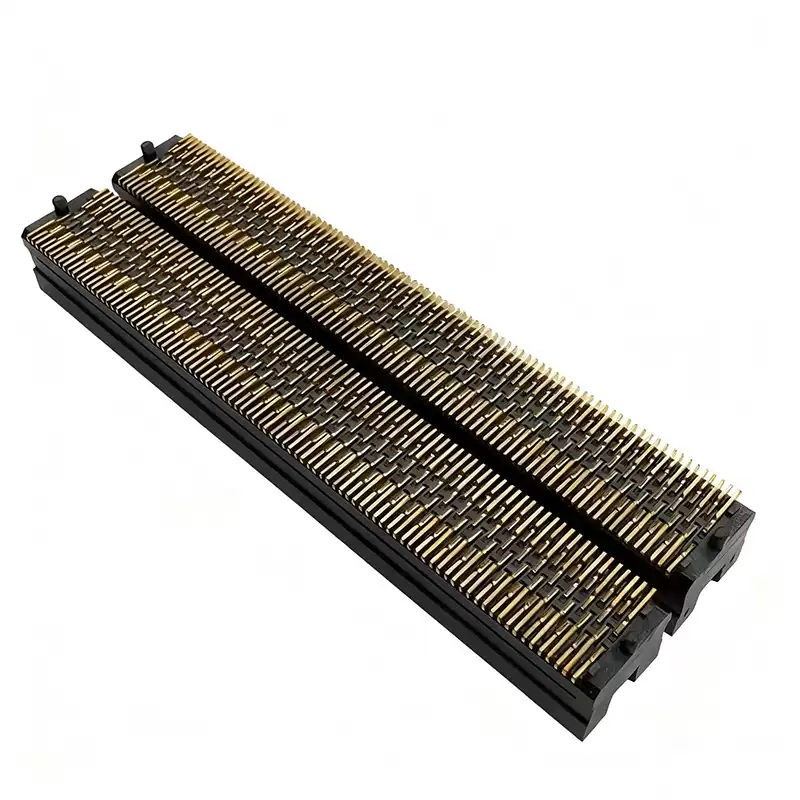

WTOLC-4X45H12LQA is the direct replacement for the TOLC-145-12-L-Q-A. It is an SMT (Surface Mount Technology) male header. The connector, part of the TOLC-145-12-L/F/S-Q-A series, features a 1.27mm pitch, 4 rows, and 180 positions.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$79.1 $76.73
In Stock (1968)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TOLC-145-12-L-Q-A
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Right-angle
Material / Metal High Copper Alloy
Rows 4
Color Yellow
Rated Voltage (VAC/VDC) 100
Rated Current per Contact (Max.) (A) 2～3A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 80in（2.03μm）
Packaging Tape and Reel
Insulation Diameter (mm) 4.35
Wire Gauge (AWG) 34
Operating Temperature -55℃～150℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
