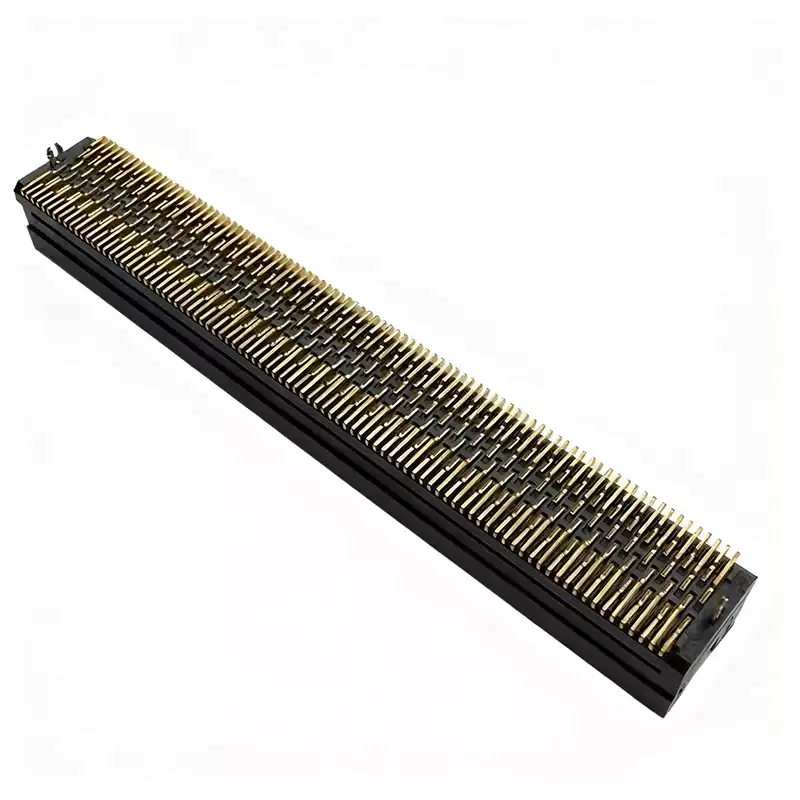

TOLC-145-12-S-Q-LC
Board-to-Board Connectors
TOLC-145-12-S-Q-LC
WTOLC-4X45H12SQLC is the direct replacement for the TOLC-145-12-S-Q-LC. It offers high & low frequency performance, high temperature and cold resistance, excellent durability for repeated mating, and oxidation resistance. The connector features 4 rows and 180 pins.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$79.6 $76.73
In Stock (1868)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TOLC-145-12-S-Q-LC
Connector Type Housing
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Right-angle
Material / Metal High Copper Alloy
Rows 4
Color Purple
Rated Voltage (VAC/VDC) 380
Rated Current per Contact (Max.) (A) 30～50A
Plating Matte Tin Plating (Sn)
Plating Thickness Special Material + Plating Combination
Packaging Rigid Tray with Cover
Insulation Diameter (mm) 5.08
Wire Gauge (AWG) 22～24
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
