TOLC-110-22-F-Q-LC
Board-to-Board Connectors
TOLC-110-22-F-Q-LC
The alternative model for TOLC-110-22-F-Q-LC is WTOLC-4X10H22FQLC.It is a perfect replacement for Shentai SMT male header TOLC-110-22-L/F/S-Q-LC-K.1.27mm pitch, 4-row 40Pin connector, with high and low frequency performance, heat resistance, cold resistance, plug resistance and anti-oxidation properties.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$4.1 $3.6
In Stock (2030)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TOLC-110-22-F-Q-LC
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
Related products
Board-to-Board Connectors

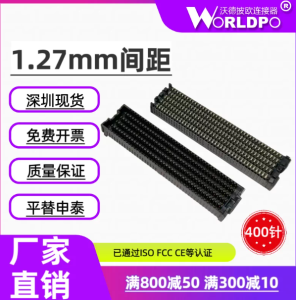

ASP-134486-01
ASP-134486-01
Board-to-Board Connectors

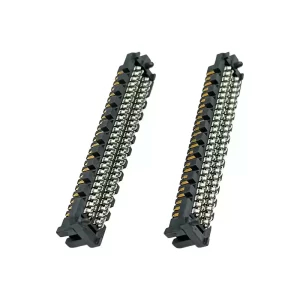

SEAM-25-02.0-L-04-2-A
