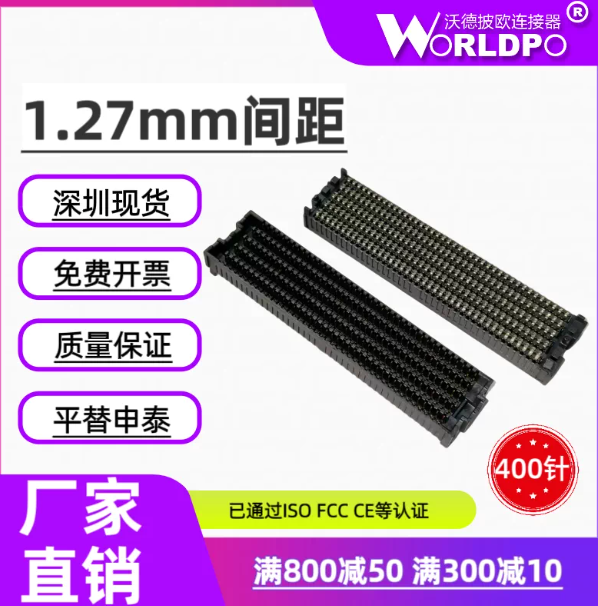

ASP-134486-01
Board-to-Board Connectors
ASP-134486-01
ASP-134486-01 is replaced by WASPF-10X40H06.5LAKTR.It is interchangeable with ASP-134488, ASP-134486, ASP-134603, 4604, 4604, 184330, 184329, ASP-134602 and 88588-01.Operating Temperature
Connector Series: WASPF
Connector Pitch: 1.27mm
Rows: 10
$10 $8
In Stock (15201)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model ASP-134486-01
Connector Type Terminal
Connector Series WASPF
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy
Rows 10
Color Natural
Rated Voltage (VAC/VDC) 240
Rated Current per Contact (Max.) (A) Other
Plating Tin Plating (Sn)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
