TFM-105-02-L-D-A
Board-to-Board Connectors
TFM-105-02-L-D-A

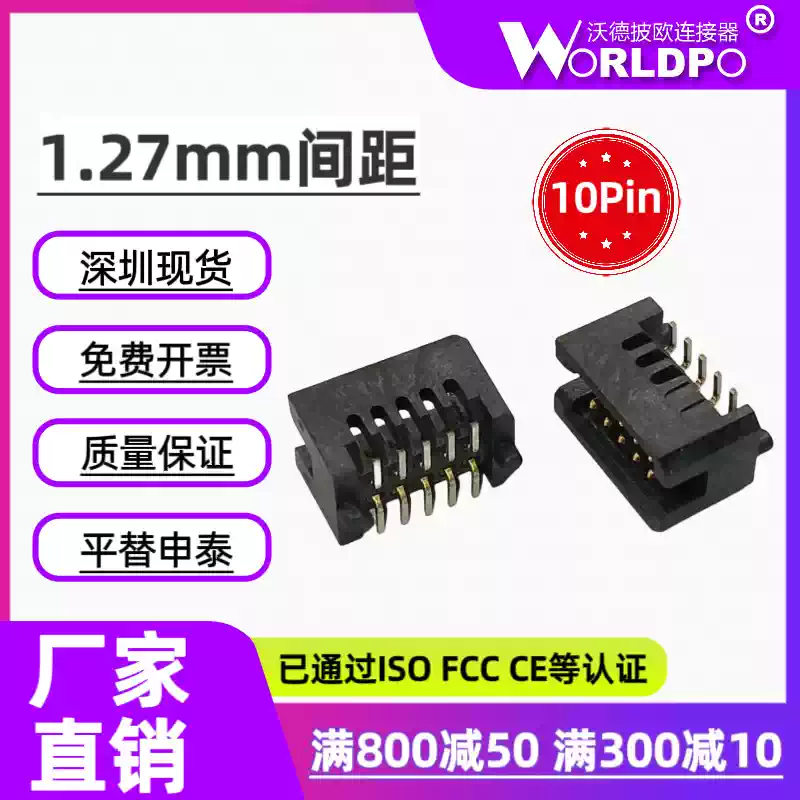

TFM-105-02-L-D-A is replaced by WTFM-205H02LDA.It is interchangeable with Samtec TFM-105-02-L/S-D-LC/A-K-TR.It is a male 2-row 10Pin SMT board-to-board connector with 1.27mm pitch, featuring high and low temperature resistance.
Connector Series: WTFM
Connector Pitch: 1.27mm
Rows: 2
$1.38 $1.1
In Stock (6000)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TFM-105-02-L-D-A
Connector Type Terminal
Connector Series WTFM
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Right-angle
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
