FTSH-105-01-F-DV-K-P
Board-to-Board Connectors
FTSH-105-01-F-DV-K-P

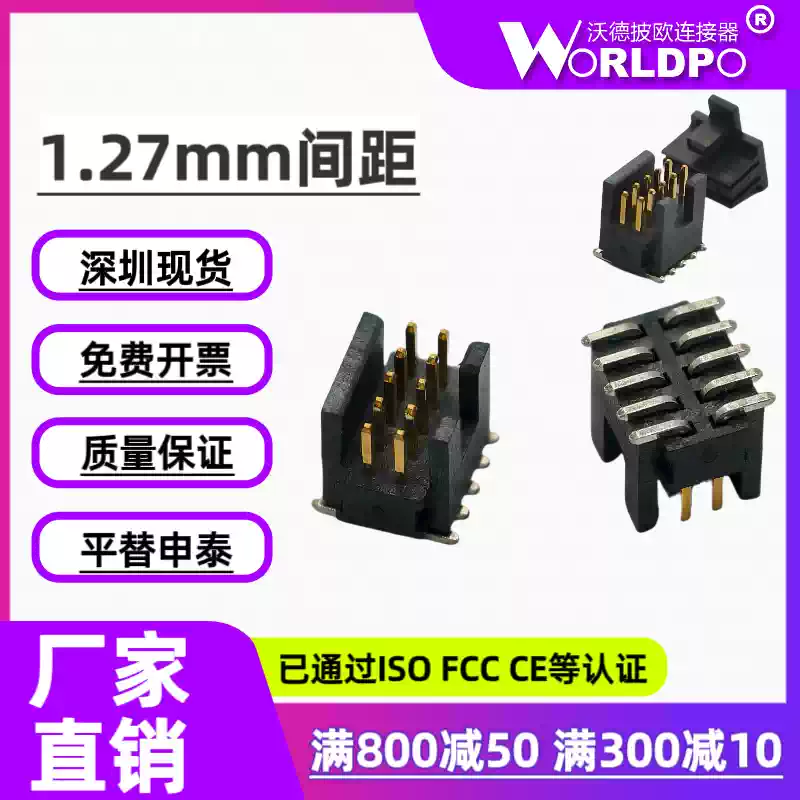

FTSH-105-01-F-DV-K-P is replaced by WFTSH-205H01FDVKP.It is interchangeable with FTSH-105-01-F/L-DV-K-P-TR. This is a male 1.27mm pin header, 2-row 10Pin board-to-board connector, featuring high and low temperature resistance.
Connector Series: WFTSH
Connector Pitch: 1.27mm
Rows: 2
$0.27 $0.25
In Stock (3300)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model FTSH-105-01-F-DV-K-P
Connector Type Other
Connector Series WFTSH
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Right-angle
Material / Metal Copper Iron Alloy
Rows 2
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness 8μin（0.203μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
