SEAM-25-02.0-S-04-2-A

Home > Wire-to-Board Connectors > SEAM-25-02.0-S-04-2-A
SEAM-25-02.0-S-04-2-A
Wire-to-Board Connectors
SEAM-25-02.0-S-04-2-A

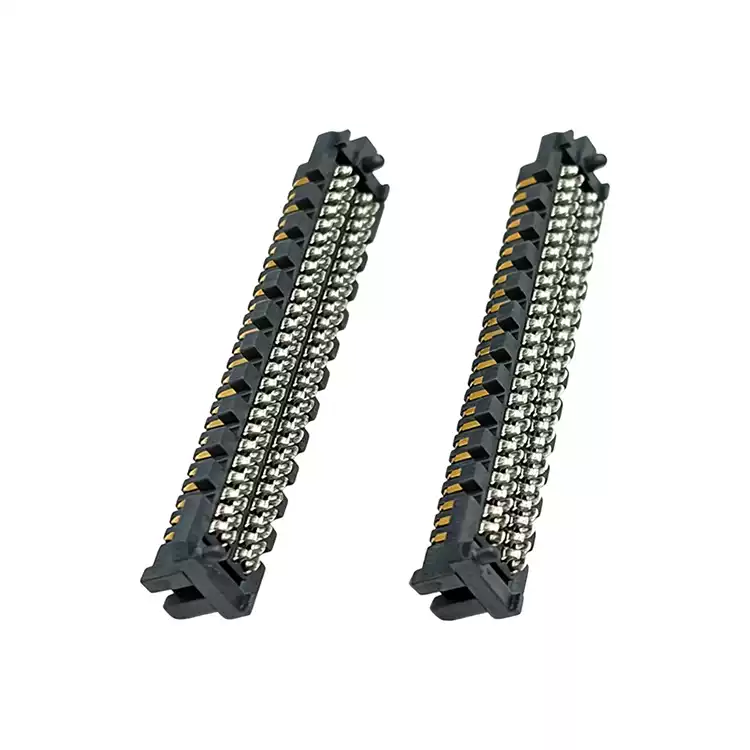

The replacement for SEAM-25-02.0-S-04-2-A is SEAM-4X25H02.0S2A, an equivalent substitute for Shengtai SEAM-25-02.0-L/S-04-2-A male connector, which is a 1.27mm pitch board-to-board connector with 4 rows and 100 pins.heat resistance and cold resistance.
Connector Series: WSEAM
Connector Pitch: 1.27mm
Rows: 4
$9.7 $9
In Stock (1000)
DownloadPDF Product message
Basic Information
Category Wire-to-Board Connectors
Model SEAM-25-02.0-S-04-2-A
Connector Type Terminal
Connector Series WSEAM
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 30μin（0.76μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.
